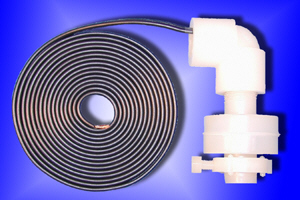

LS-31 Horizontal Mounting Single Point Liquid Level Switch


ls31dim.gif (1903 bytes)    The LS-31 level switch is a horizontally mounted level switch with a vertically traveling float.  Like the LS-30, the LS-31 is specially designed to address those hard to handle inductive loads found in electromagnetic devices such as solenoid valves.

    Typical applications include maintaining a constant liquid level by directly controlling a solenoid valve.   Or, as a high alarm switch to control alarm lights, strobes, and alarm horns.   It can also be used as a high level cut off switch that can directly control most single phase load contactors.  For more information, download the LS-31 Data Sheet.





Part Number

Wet End Material

List Price

LS-31P-0120

PP

$120.00

LS-31F-0120

PVDF

$174.00
